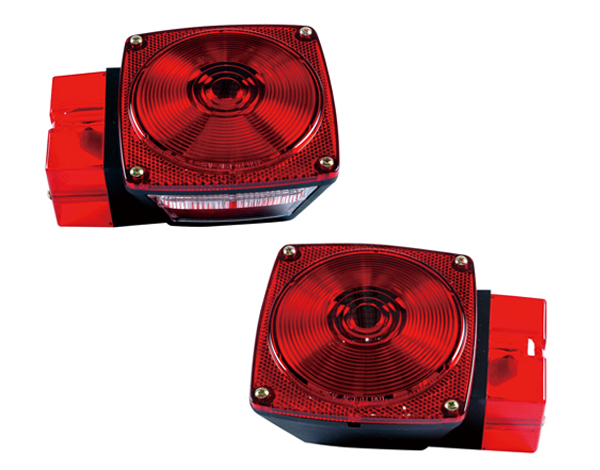

2323Over 80" Wide Combination Tail Light

Material: Acrylic lens, black polypropylene base



SAE code: AI6S2T / APC / L



Light Source: Bulb: #1157 32/3CP



Voltage/amp: 12.8V 2.10A ; 14.0V 0.59A



Light Source: Bulb: #193 2CP



Voltage/amp: 14.0V 0.33A



Information

For small trailers driver, universal stud-mount, 6 functions for right hand lamp: stop, tail, turn, rear reflector, side marker and side reflector, 7 functions for left hand: same as right hand light plus license function.

Product Parts

LH light w/license
232301
RH light
232302
trailer light kit
232390





Drawing

size picture
232301
size picture
232301

Replacement Lens

red stop/tail lens
232112
red side marker lens
232312S

Products Type

Order No.
Description
Pack
Inner/pcs
Master/pcs
Cube ft
G.W. kg
Color
Director
232301 / 232302
B
Light
Bulk Packing
10
60
4.62
16.10
R
232301 / 232302
V
Light
Blister Packing
6
36
4.62
11.80
R
232390
B
Light
Bulk Packing
1
12
2.95
16.40
R
232390
V
Light
Blister Packing
2
12
4.76
16.30
R
